Azteeg G1-328P CNC Controller w/ 3AX Driver module
Product Code: MCNC-3AZ-328P
Price: $89.00
Description
Description:

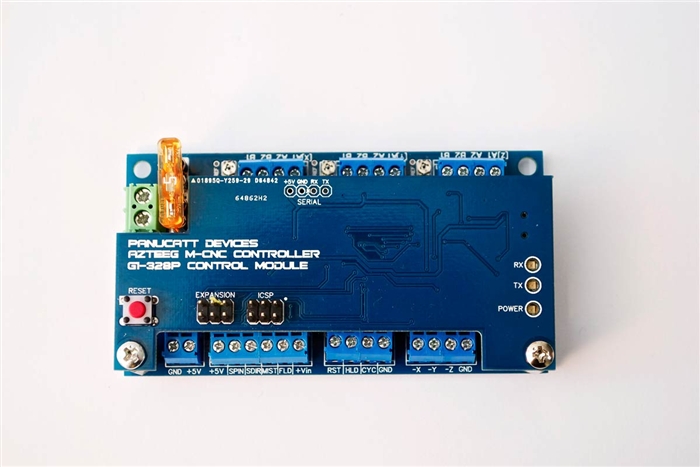

The Azteeg G1-328 control module is part of the Azteeg Modular CNC controller system.It is designed to run small to medium scale 3 axis machines like CNCs, Laser cutters and other cartesian based bots. It runs the free and powerful GRBL firmware and can be controlled by streaming g-code through USB.
We combined the Arduino and the GRBL board to create the simple to use all-in-one controller. All the pins are available for expansion and utilizes the robust and proven stepper drivers from Texas Instruments.
Installation is easy with the Azteeg G1-328 as all connectors are on the edges and utilizing terminal blocks for all wire connections.The G1-328 can be run directly with a single power supply with capability of accepting up to 30VDC.
THis kit comes with the G1-3AX 3 Axis driver Module with Ti DRV8825 stepper drivers. 2.5 Amps Max and fault protection.
The Azteeg G1-328 CNC controller with GRBL is the easiest way to run your Shapeoko or any other desktop sized CNC machine.
G1-328 controller Features:
Atmel ATMEGA328P micro controller
FTDI FT231x USB chip
Compatible with GRBL control software
Power select Jumper (USB power or Internal Power supply)
Serial pins for Bluetooth and other comminication devices
Rx / Tx Leds
G1-3AX Driver Features:
3 DRV8825 Stepper drivers, 2.5 AMPs max
4 Mosfet switched outputs for external Sold State relays
3 Limit/Endstops (Mechanical or Hall effect)
12-30v input high efficiency 5V switching Power supply @ 500ma max
Micro-step select jumper
Mounting holes for heat plate on underside of PCB
