Azteeg G1 CNC Controller
Product Code: AG1CNC
Price: $79.99
Description
This product has been replaced by the Azteeg M-CNC controller.
Description:

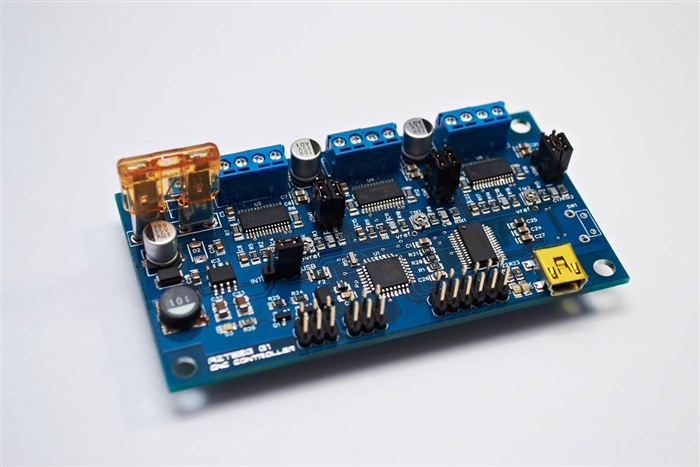

The Azteeg G1 is an open source single board CNC Controller designed to run small scale 3 axis machines. It comes with built stepper motor drivers for a total all-in-one solution. It runs the free and powerful GRBL firmware and can be controlled by streaming g-code through USB.
We combined the Arduino and the GRBL board to create the simple to use all-in-one controller. All the pins are available for expansion and utilizes the robust and proven stepper drivers from Texas Instruments.
Installation is easy with the Azteeg G1 as all connectors are on the edges and utilizing terminal blocks for the motor connections.The G1 can be run directly with a single power supply with capability of accepting up to 30VDC.
The Azteeg G1 CNC controller with GRBL is the easiest way to run your Shapeoko or any other desktop sized CNC machine..
Features:
- Atmel ATMEGA328P micro controller
- 3 DRV8811 Stepper drivers, 2AMPs max
- Micro-step select jumper
- FTDI FT231x USB chip
- Compatible with GRBL control software
- 2 Mosfet switched outputs for spindle control using external Sold State relays
- 3 Limit/Endstops (Mechanical or Hall effect)
- 12-30v input high efficiency 5V switching Power supply @ 500ma max
- 2oz copper for better heat dissipation. RoHS compliant
- Rx / Tx Leds
- Power select Jumper (USB power or Internal Power supply)
